ASUS Republic of Gamers Launches ROG Matrix GeForce RTX 4090

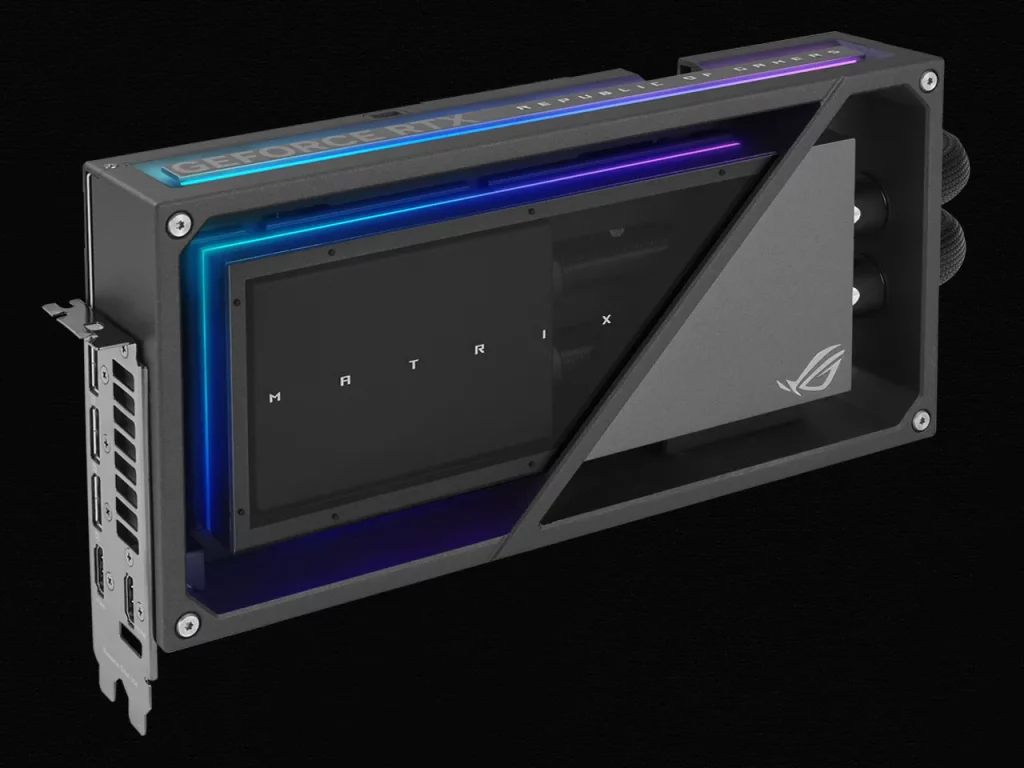

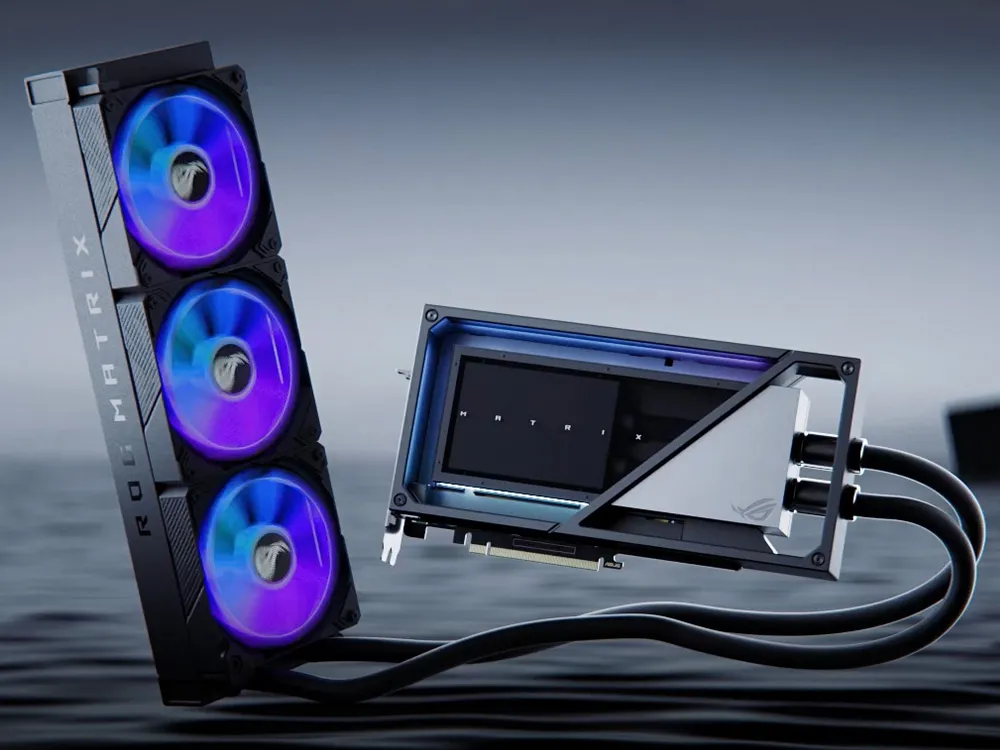

Asus announced today the launch of its latest overclocked gaming graphics card at an incredible 2700MHz clock, achieved by adding a cooler of equally incredible scale: A 400mm-long triple 120mm fan unit in closed-loop configuration:
Other improvements include liquid metal compound on the GPU die for low temperature and noise, a larger cold plate than previous models, and magnetic daisy-chainable fans for optimized heat dissipation. Custom GPU Tweak III software includes Thermal Map, Power Detector+ and Mileage features exclusive to the ROG Matrix GeForce RTX 4090 make it easy to achieve optimized performance.

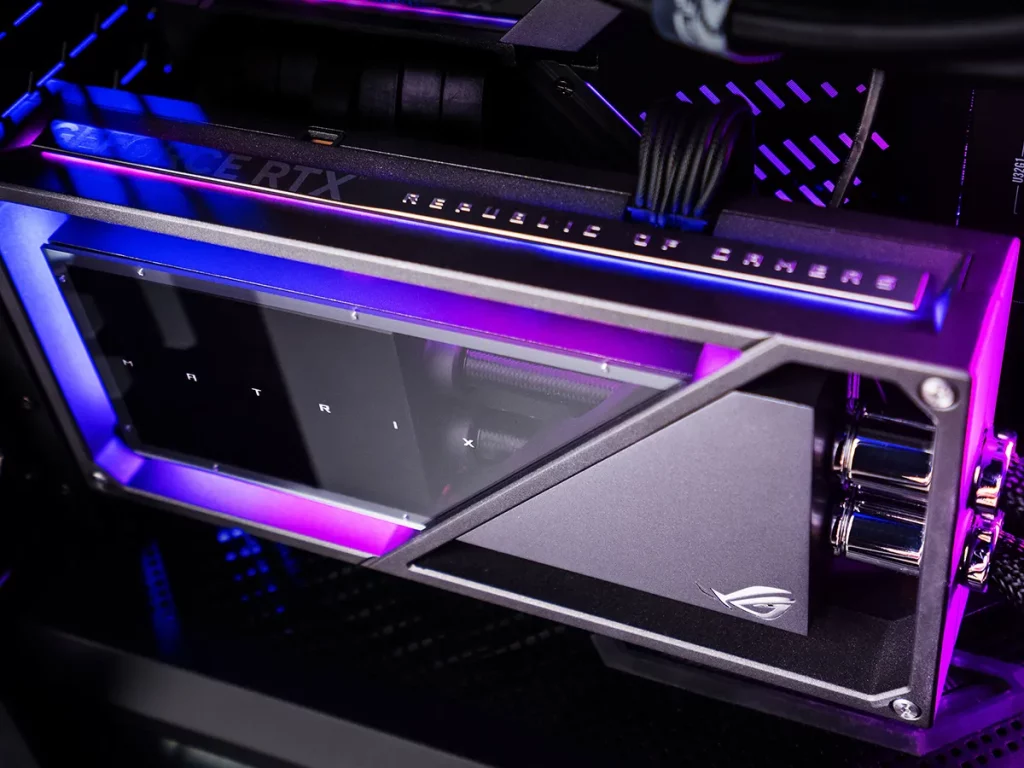

Due to its enormity, the new model might not be as big a deal to those of us who remember when liquid cooled cards would give us a slot back: This model spills out past its second slot to a 2.5-slot frame, and our examination comes up with no better reason than “style”. High-end gaming system builders simply don’t need as many slots as they once did, and we can’t find a case small enough to exclude this card that wasn’t already too small to support its radiator. Still, the 2.5-slot frame design being used to support a card and cooling solution that’s less than two slots thick feels a bit…overdone.
Click for more information from the ROG Matrix Platinum GeForce RTX 4090 24GB GDDR6X website.
| ROG Matrix Platinum GeForce RTX 4090 24GB GDDR6X | |
| Graphic Engine | NVIDIA® GeForce RTX™ 4090 |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 24GB GDDR6X |
| Engine Clock | OC Mode: 2700 MHz Default Mode: 2670 MHz |
| CUDA Core | 16384 |
| Memory Speed | 21 Gbps |
| Memory Interface | 384-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface | 2x Native HDMI 2.1a 3x Native DisplayPort 1.4a HDCP Support 2.3 |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Collection Card 1 x Adapter Cable (1 to 4) 1 x Speedsetup Manual 1 x ROG Velcro Hook & Loop 1 x ROG MATRIX NFT Register procedure 1 x Thank you Card |
| Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver (Please download all software from the support site) |
| Dimensions | Card: 286.5 x 148.3 x 24.5mm Radiator: 400 x 120 x 65mm |
| Recommended PSU | 1000W |
| Power Connectors | 1 x 16-pin |
| Slot | 2.5 Slot |
| AURA SYNC | ARGB |
| Note | * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html |
